Beskrivning
Specifications
Motor Kv 535KV RPM/Volt
Weight 532 Grams

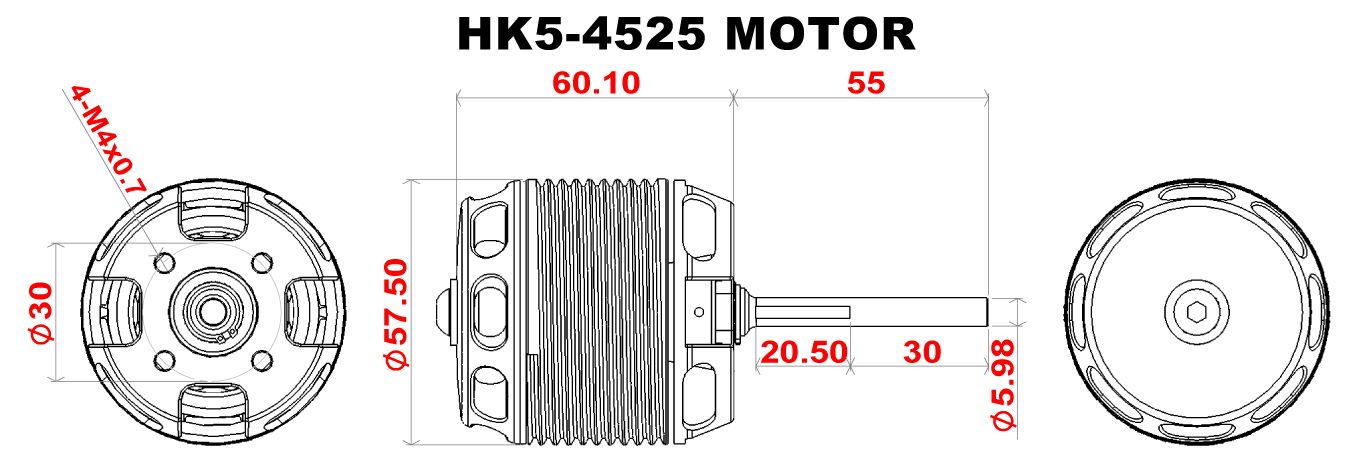

Motor Body Dimensions 57.5 mm x 61.5mm

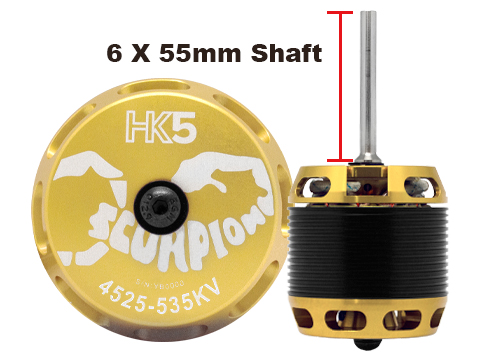

External Shaft Dimensions 5.98mm x 55mm
Continuous Current 115 Amps
Continuous Power 5106 Watts
Peak Current 230A (2 seconds)
Peak Power 10200 Watts (2 seconds)
Max Lipo Cell 12s
Stator Diameter 45 mm (1.57 in)
Stator Thickness 25 mm (1.18 in)
No. of Stator Arms 12
No. of Stator Poles 10
Motor Wind 5+6T YY
Motor Wire 1.4mm

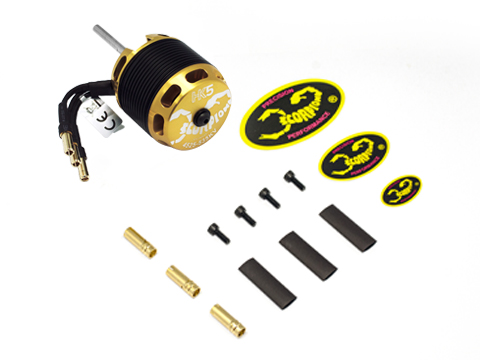

Included in the Box

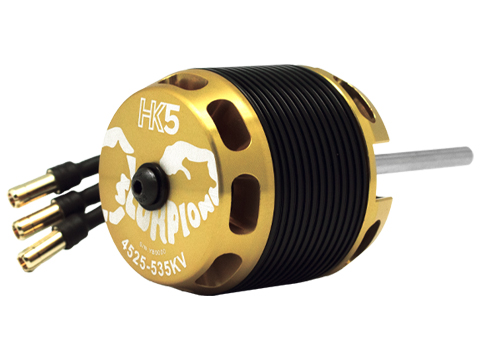

1 x Scorpion HK5-4525-535kv BLDC Motor
3 x 6mm Female Bullet Connectors + Heat Shrink
1 x Hardware pack (M4 Bolts)
